Focus on manufacturing color stone coated roofing tiles for 16 years high-end products make high-end brand.

Home   |   Product   |   Wood Shake roof tiles   |

Wood Shake

这里可以自定义设置

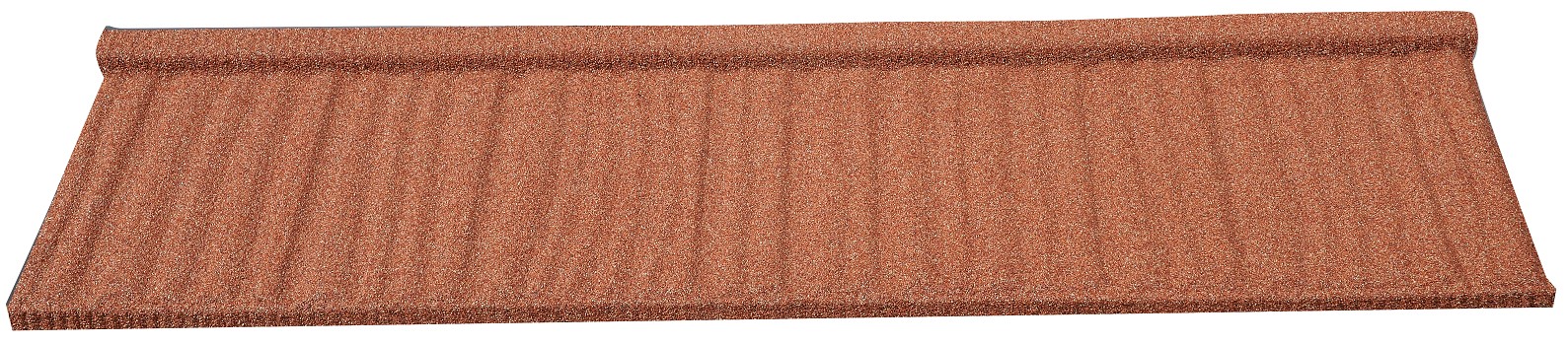

Wood Shake

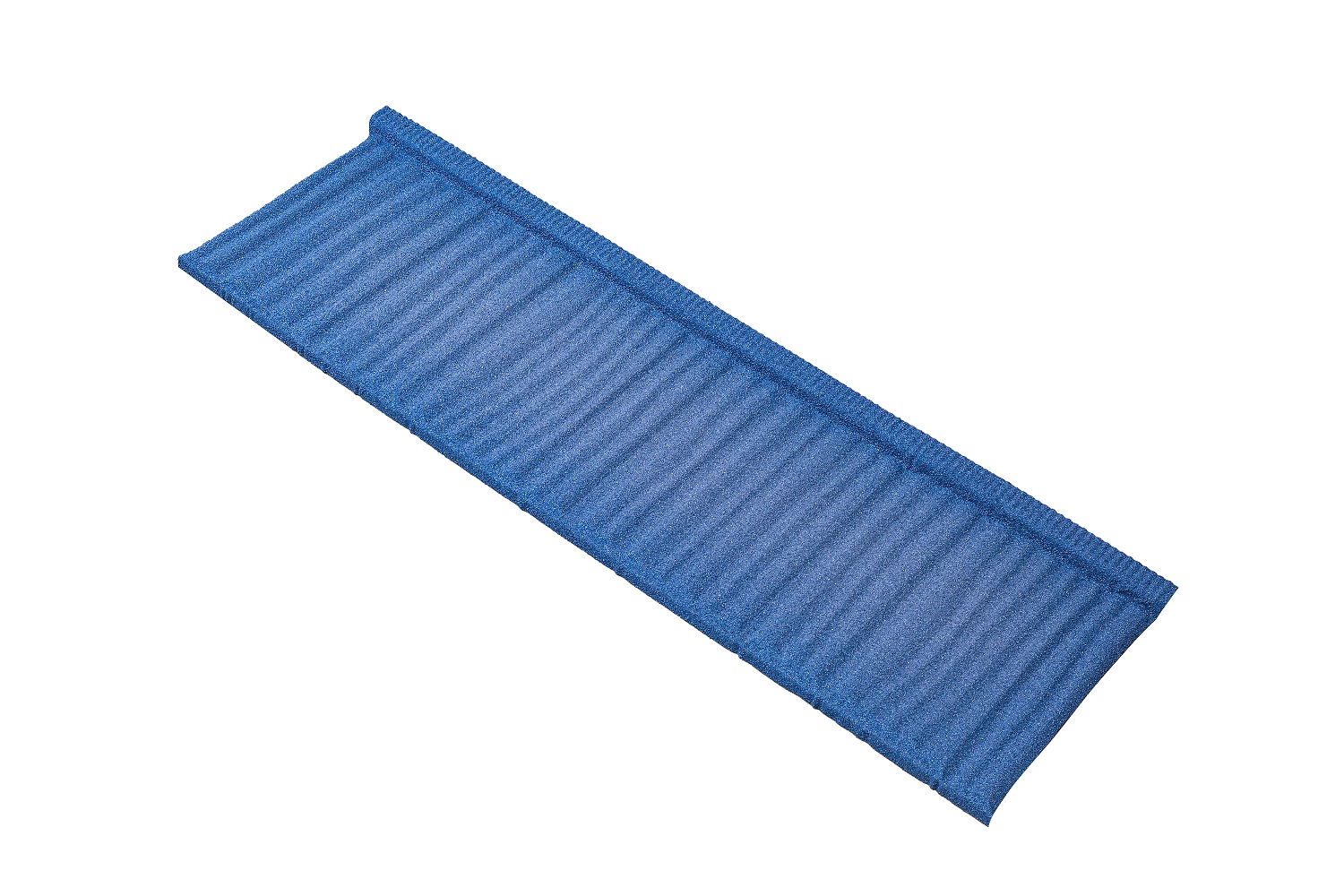

sapphire bule stone coated metal Roofing Tiles (with Ce)from Manufacturer-foshan New Sunlight
B站不支持收货地址
B站不支持库存规格
Model:
Wood shake
Place of Origin
Foshan China
Brand
New sunlight
MOQ:
1pcs
Payment:
T/T, L/C, Western Union, Cash
Delivery Time:
7-20 working days
Start Port:
Shenzhen Guangzhou Foshan
Certification:
ISO, SONCAP, CE
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

sapphire bule stone coated metal Roofing Tiles (with Ce)from Manufacturer-foshan New Sunlight



Bond type stone coated metal roof tile
Overall size:1330mm*420mm
Cover size:1270mm*380mm
Thickness:0.4mm 0.45mm 0.48mm
Tile/m2: 2.08pcs
Weight/piece: 2.8kgs/3.0kgs



Other products for your choose

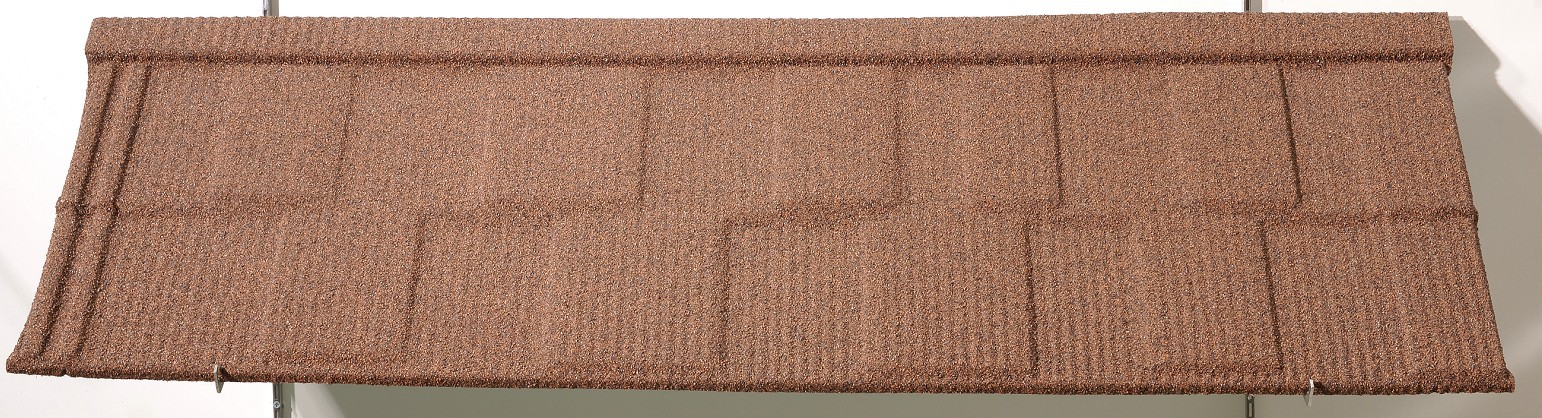

Shingle roof tiles

Shingle type stone coated steel roofing
Overall size:1320mm*420mm
Cover size:1270mm*380mm
Thickness:0.4mm 0.45mm 0.48mm
Tile/m2: 2.08pcs
Weight/piece: 2.8kgs/3.0kgs

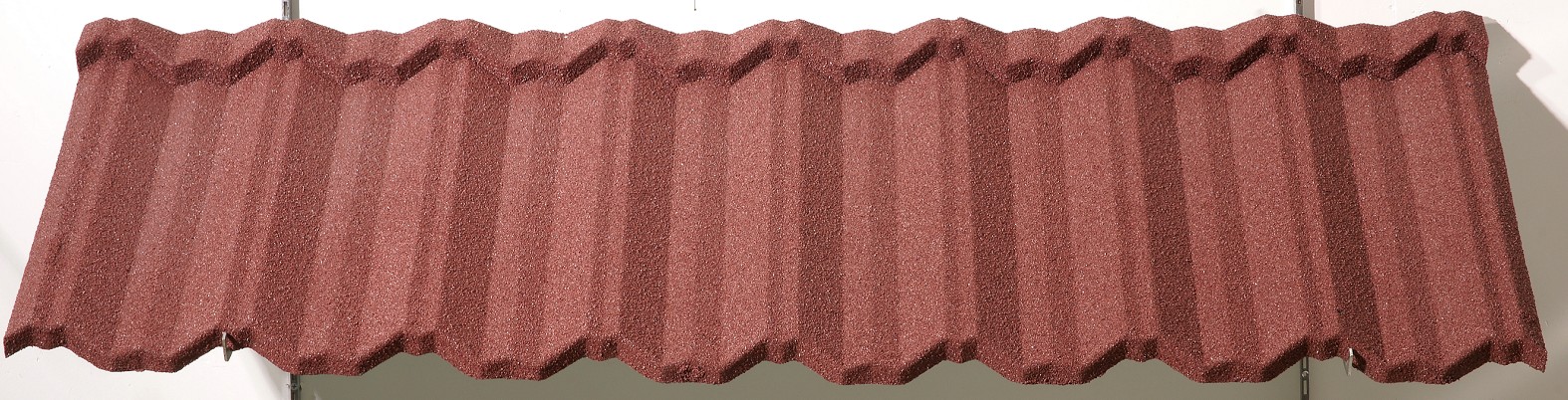

Rainbow roof tile

rainbow type stone coated steel roofing
Overall size:1335mm*420mm
Cover size:1270mm*380mm
Thickness:0.4mm 0.45mm 0.48mm
Tile/m2: 2.08pcs
Weight/piece: 2.8kgs/3.0kgs

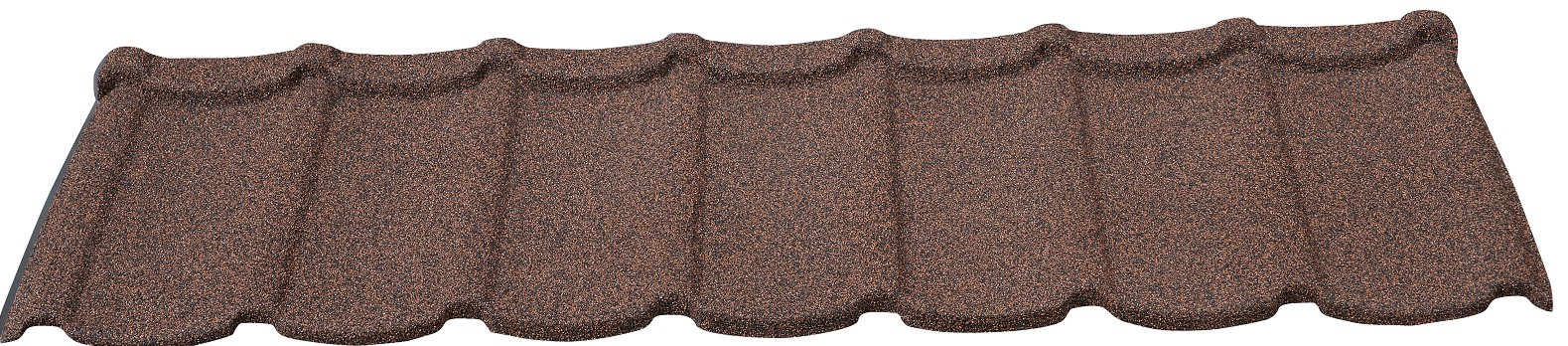

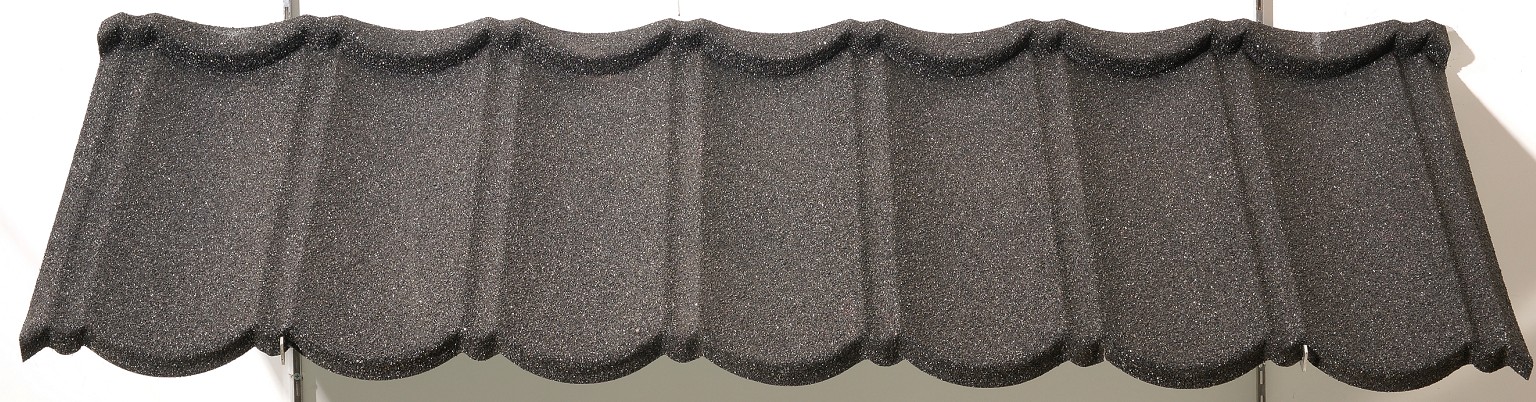

Classic roof tiles

Classic type stone coated metal roof tile
Overall size:1320mm*420mm
Cover size:1270mm*380mm
Thickness:0.4mm 0.45mm 0.48mm
Tile/m2: 2.08pcs
Weight/piece: 2.8kgs/3.0kgs

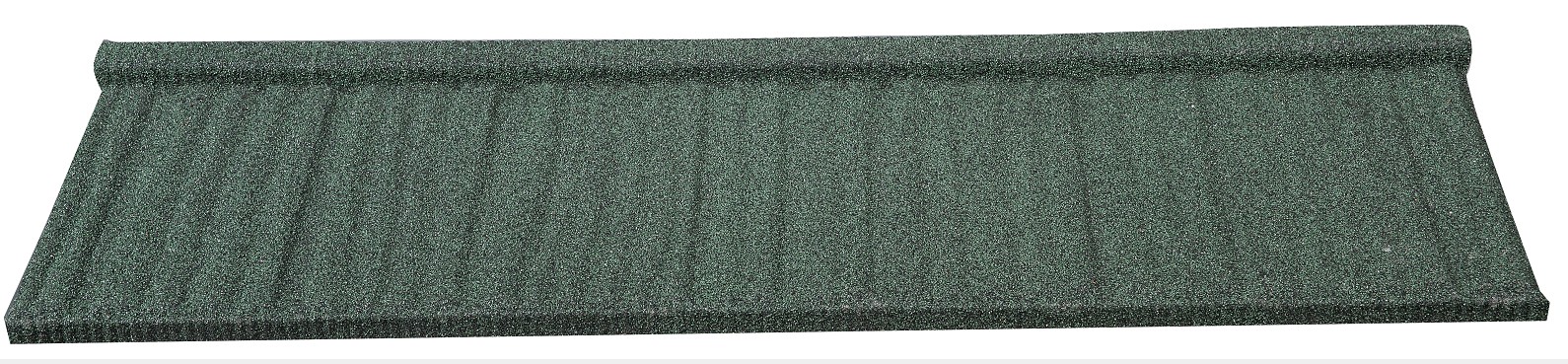

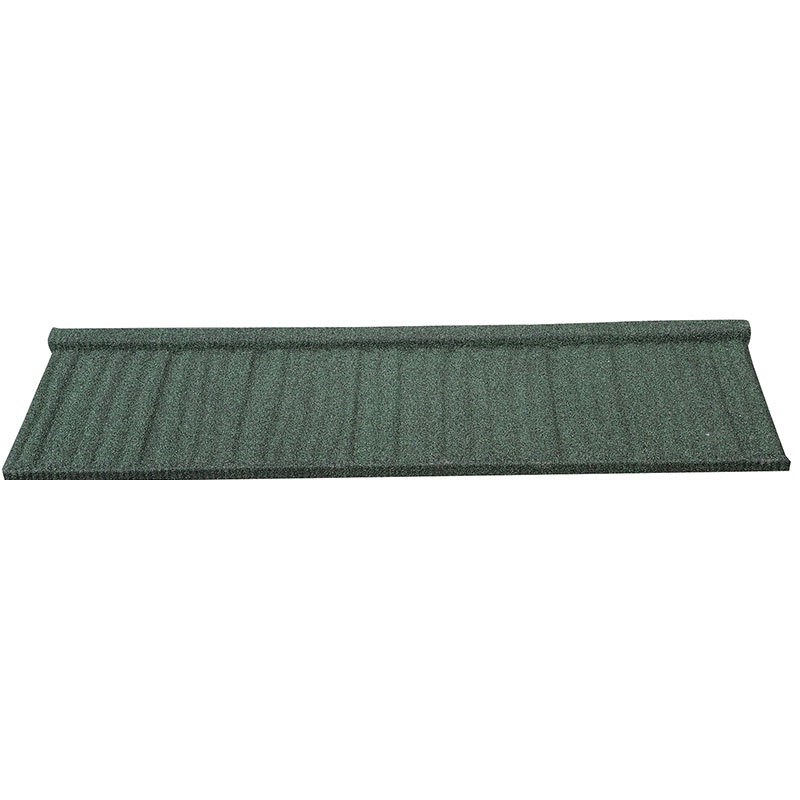

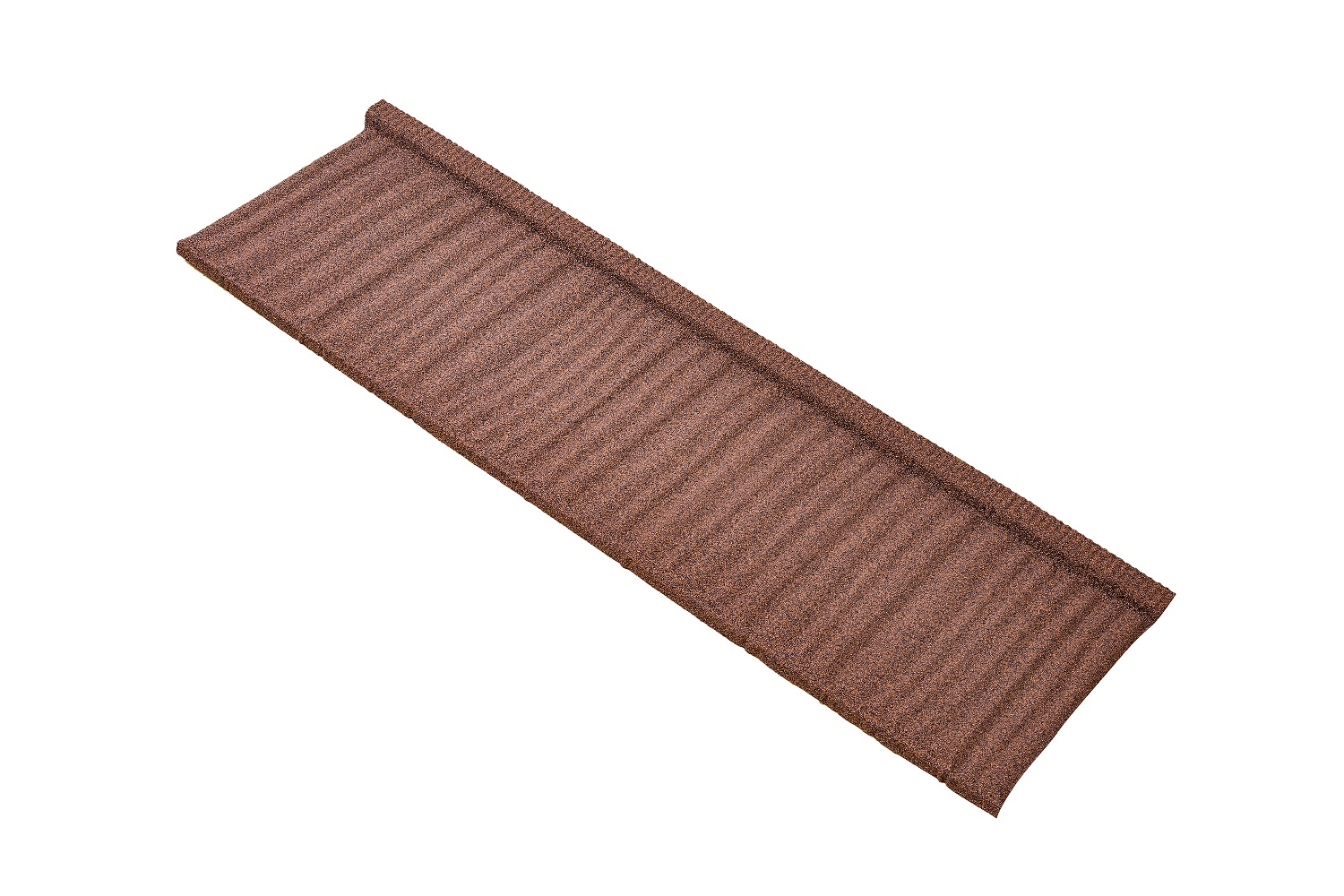

Wood Shake roof tiles

Classic type stone coated metal roof tile
Overall size:1335mm*420mm
Cover size:1270mm*380mm
Thickness:0.4mm 0.45mm 0.48mm
Tile/m2: 2.08pcs
Weight/piece: 2.8kgs/3.0kgs





Product Description



Colorful Stone Coated Metal Roofing Tiles - Bond Type

(1) Thickness

0.4mm,0.45mm,0.5mm

(2) Weight

2.6~3.2kg per piece

(3) Overall size

1320mm*420mm

(4) Valid size

1270mm*380mm

(5) Acreage per tile

0.48SQM

(6) Sheets per square meter

2.08pcs

(7) Package

400-600pieces per pallets

(8) Loading

8000~10000pcs/20ft container with accessories

(9) Normal color

red; black; green; charcoal black; weathered brown; grey; sapphire blue...12 standard colors

(10) Special color

Can be produced as request





 Stone Coated Metal Roof Tile Accessorie

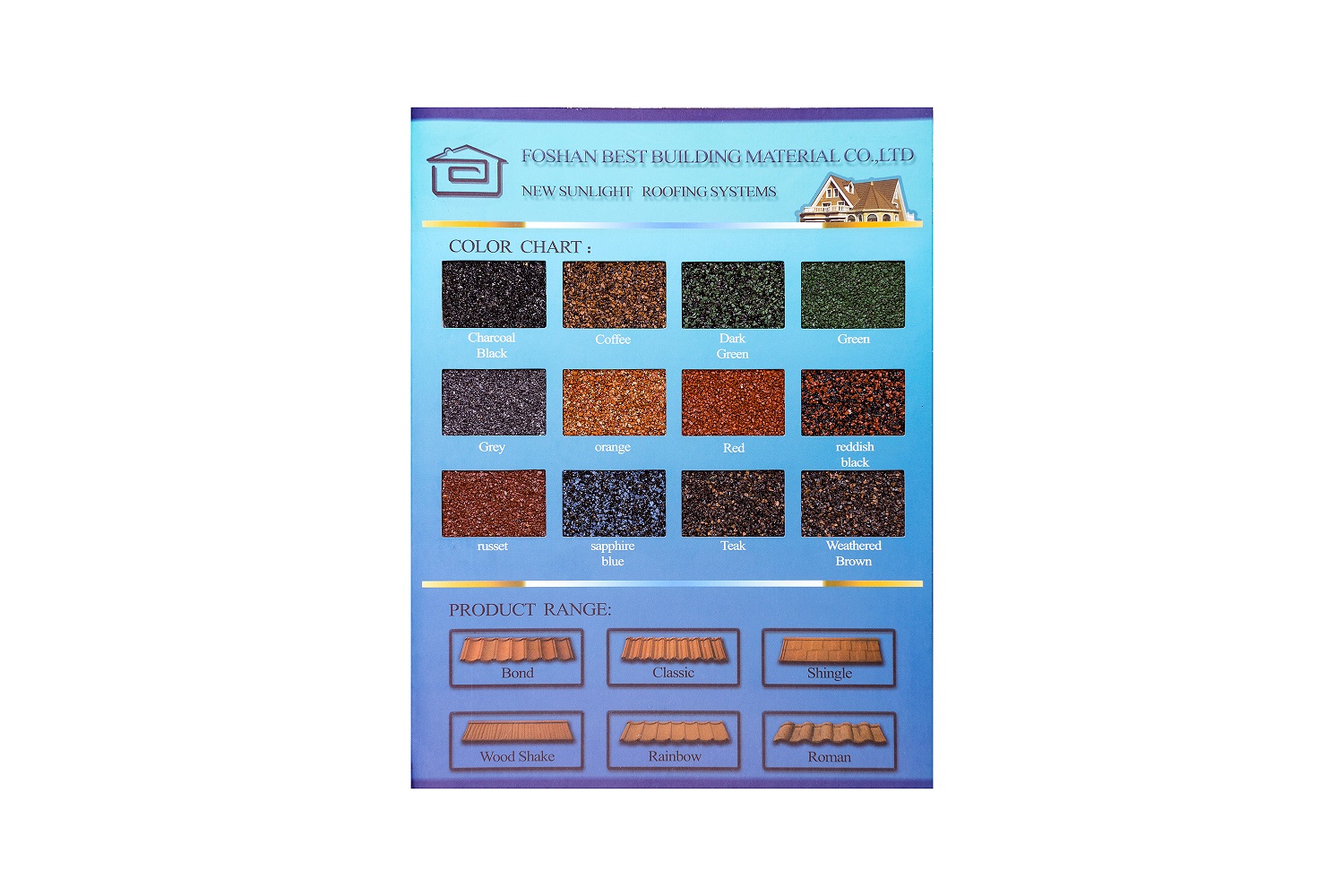

Standard color chart

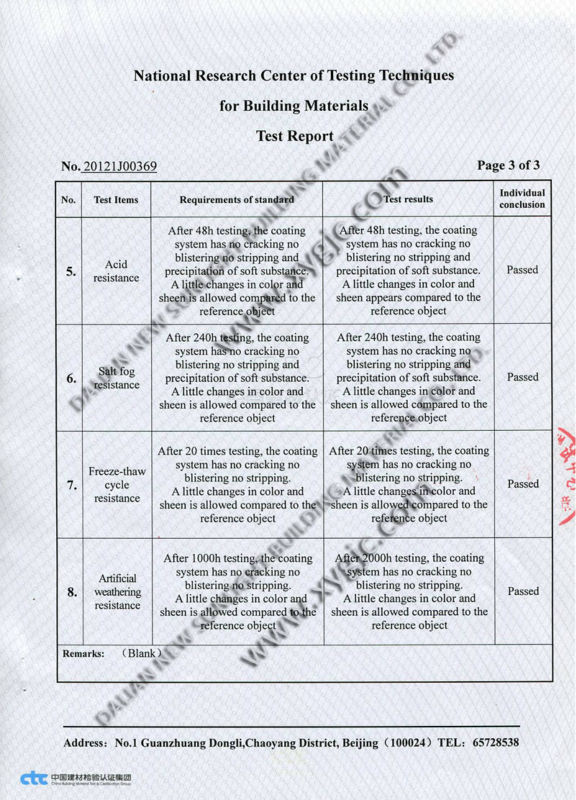

  Test Report of the Stone Coated Steel Roof Tile

Testing Item

Technical Indicators and Test Results

Inspection Unit

Water resistance

After 24h test without anomalies

China's national building material testing center

Heat resistance

No abnormalities after 90*5h test

China's national building material testing center

Low temperature resistance

After -40*24h without anomalies

China's national building material testing center

Alkaline resistance

After 48h test without anomalies

China's national building material testing center

Acid resistance

After 48h test without anomalies

China's national building material testing center

Resistance salt spray

After 240h test without anomalies

China's national building material testing center

Cycle of freezing and thawing

After 20times test without anomalies

China's national building material testing center

Article weathering

After 1000h test without anomalies

China's national building material testing center

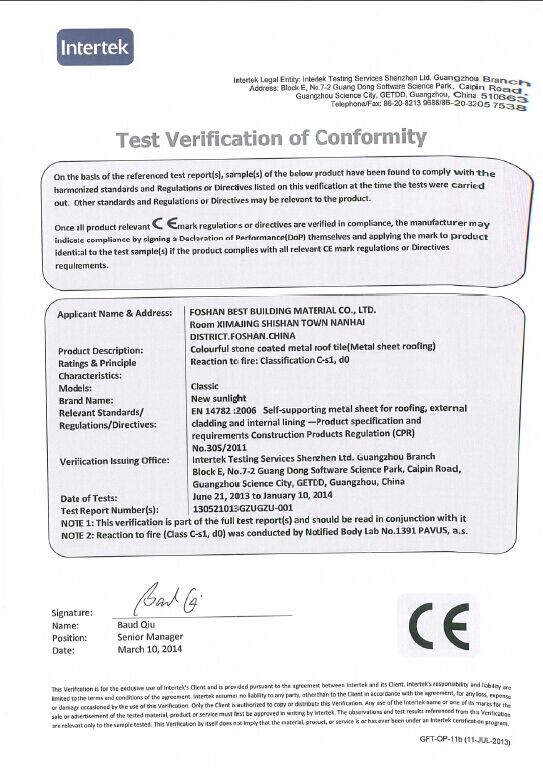

Certificate of  roof tiles

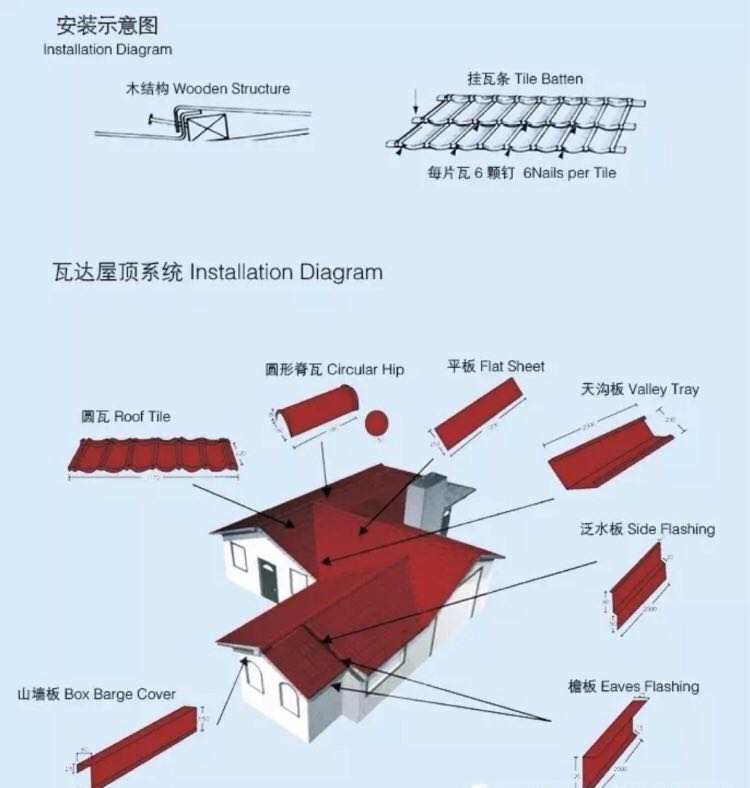

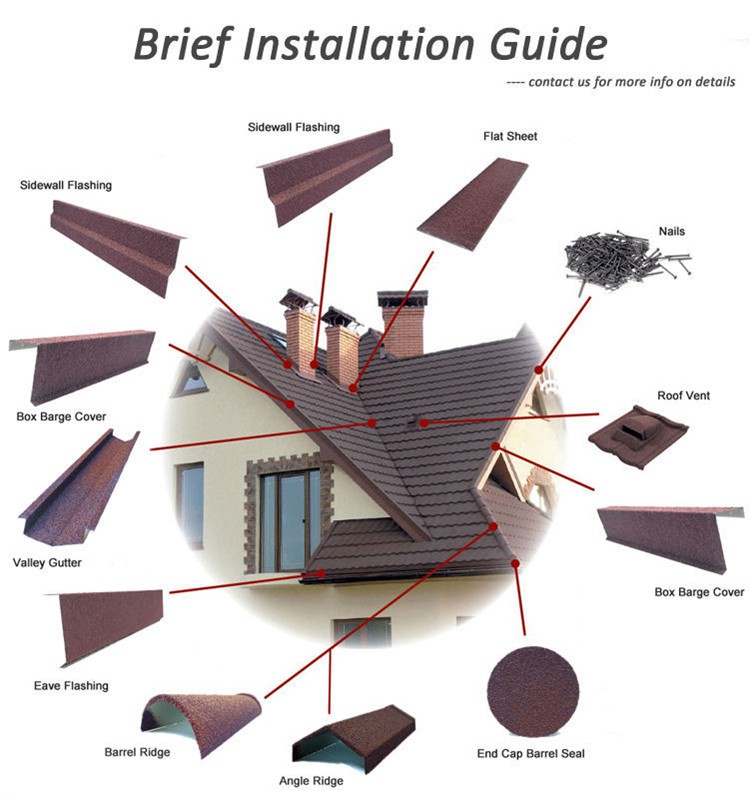

Stone Coated Metal Roof Tile Installastion

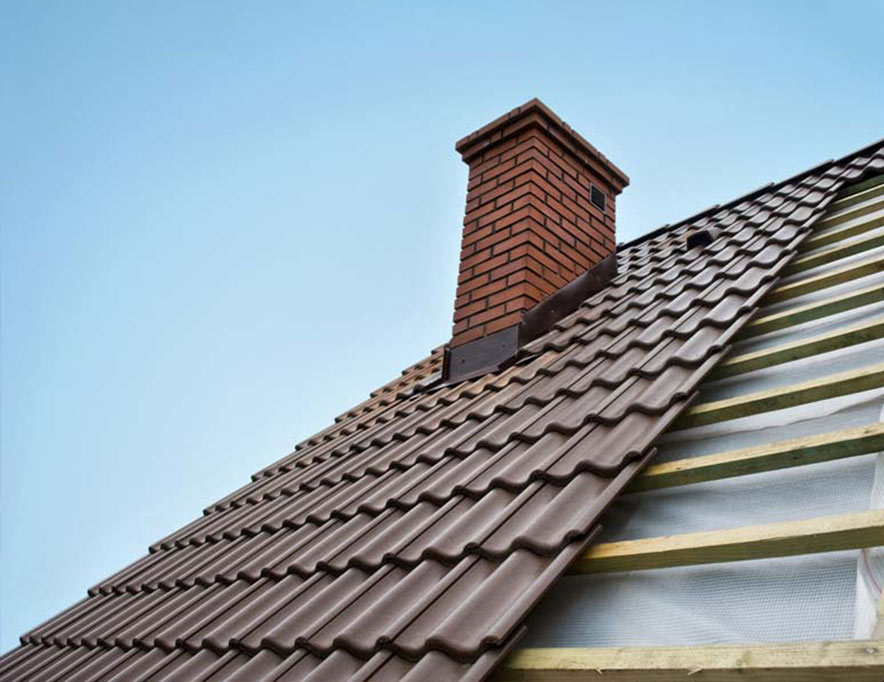

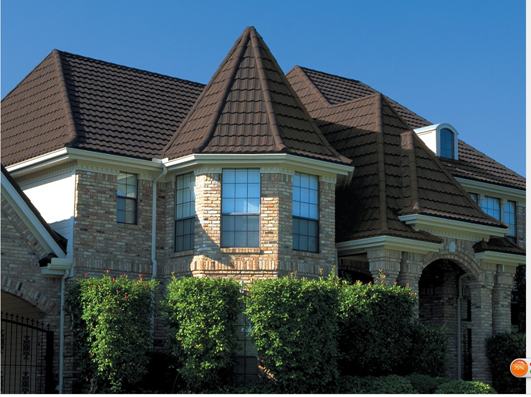

Stone Coated Metal Roof Tile Project


Packaging & Shipping

f  roofing sheet stone coated metal roof tie


Our Services

roofing sheet stone coated metal roof tile




Customer: Are you factory?
Newsunlightrooftile: Yes. We are a professional manufacturer factory .
There are production workers, including R & D personnel and quanlity inspection personnel in our factory.And Newsunlightrooftile marketing center will provide the best service for you.

Customer: What is your price terms?
Newsunlightrooftile: Normally FOB(free on board), CIF(cost insurance and freight), EX-work

Customer: What is your payment terms?
Newsunlightrooftile: We accept T/T and Western Union and MoneyGram, LC according to your convenience.

Customer: How can I visit your factory or office?
Newsunlightrooftile: Welcome you visit to Newsunlightrooftile Factory . My subsidey factory is in Foshan near in Guangzhou .We can pick you up in Guangzhou hotel or airport .

Customer: Can you produce the goods as customer design?
Newsunlightrooftile: Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon as possible.

Customer: May I get your sample for free?
Newsunlightrooftile: Sure, you can get our free sample,please contact us first.

Customer: How about the products packing?
Newsunlightrooftile: Flexible packing according to the specific requirements of the clients.



Customer: What is warranty of roof tiles ?
Newsunlightrooftile:  30 years do not change or fade color ,if our roof tiles change color ,we can return back all money to my clients .

Welcome to visit Newsunlightrooftile!

Company Information

roofing sheet stone coated metal roof tile

Dalian New Sunlight Building Material Co., Ltd. (New Sunlight Roof Co., Limited) is the first company which is specialized in researching, designing, manufacturing and exporting stone coated metal roofing tile in China. It took the lead to get the ISO9001 and ISO14001 certificates. At present, it has founded two production bases located in both Dalian city and Guangzhou Foshan city with annual production capacity of 2,000,000 square meters.

Our products, stone coated metal roofing tiles, have been popular in domestic and overseas market for years. They are used widely in China, USA, Japan, Canada, Nigeria and many other countries and regions.

Our company devotes in researching, designing and manufacturing stone coated steel roofing tiles which are beautifully designed, in excellent material and high quality. New Sunlight roofing system will provide safe, durable, eco-friendly roofing solution for domestic and overseas customers.



Stone Coated Metal Roof Tile Production Lineroof  production line

FAQ



Question: Is Lightning Attracted to a Metal Roof?

Answer: There is absolutely no increase in the likelihood of your home being struck by lightning if you have a metal roof. In fact, if lightning does strike your New Sunlight Stone Coated Steel Roof, the energy safely dissipates throughout the entire roof surface, and can exit into the ground. Also, because metal roofing is NOT combustible or flammable, it is an even smarter choice for roof coverings in lightning prone and severe weather areas.



Question: Is a Stone Coated Steel Roof a Noisy Roof?

Answer: Absolutely not! Now hear this: a New Sunlight Stone Coated Steel Roof is often much quieter than even an asphalt shingle roof. Because of our unique installation method that creates a sound along with our beautifully functional stone coated surface, even a torrential rain striking the roof panels is no louder than it would be on a heavy wood shake roof.



Question: Is Rust a Problem with a Stone Coated Steel Roof?

Answer: No! In fact, New Sunlight Stone Coated Steel Roof panels are made from high quality galvanized steel that is coated with an acrylic base coat. Ceramic earth-stone granules are then embedded over this base coat. Finally, a clear acrylic over-glaze is applied and baked on. This provides your home with a long-lasting, durable and fade-resistant protection for a lifetime of enjoyment.



Question: Is Denting a Problem?

Answer: Again, no! In fact, New Sunlight Stone Coated Steel Roofs can and do stand up to hailstones, snow loads and extreme wind conditions without any structural or cosmetic damage. That’s one reason our weatherproof warranties include a 120 m.p.h. Wind Warranty (equal to an F2 tornado!) and 2.5 inch Hailstone Warranty.



Please contact us if you have any questions.







 New Sunlight  Building Material Co.,Ltd.



General Factory Address: No.78, Youjia Industrial Park, Xinzhaizi, Ganjingzi District, Dalian City



Branch Factory Address: No.3 Hengfeng Rd, Shishan Industrial Park,Nanhai District, Guangzhou Foshan City



Contact: Cathy



Cell phone :+0086-13047047695

Whatsapp:   0086-18038710561

roofing sheet stone coated metal roof tile




Product description

Stone coated steel roofing tile is a kind of innovative, composite, eco-friendly, high-tech product. Its base material is Aluminum -zinc steel sheet in high corrosion resistance. The surface treatment is natural stone gravels which are in natural color or colored with inorganic pigments adhering to the Aluminum-zinc steel sheet. The adhesive, a kind of high-quality water-based acrylic resin, is researched and invented by ourselves.



In the international modern market, the tiles are popular and advanced roofing material with both the excellent decorating properties of traditional roofing tiles and the light-weight durable properties of modern roofing tiles.



Stone coated steel roofing tile avails to pitched roofing project n many kinds of steels and structures such as wooden, steel, concrete structures. It also avails to the projects to change flat roof to pitched roof of existing buildings reform the old roofing and decorate a part of buildings, etc.

Product details

In corporate governance, the board attaches great importance to the company's internal control and risk management, and constantly strengthen the company's overall risk management capabilities, enhance the level of compliance management.

01

About Al-Zn steel plate

55% Aluminum, 43.4% Zinc, 1.6% Silicon sprayed steel plate. Have a longer life span, compared with zinc plated steel plate. Zinc plated steel plate will be rusted for 3 -4 years, our Al-Zn steel plate will not be rusted for 40-50 years.

02

High-tech color stone

It is the protection and decoration layer for stone coated metal roof tile. We used high-tech 950 degree burned color stone basalt stone chip, the color will no fade for raining.

03

Wind Resistant

The wind resistance of our products can reach 70-80mph. We've got the certification such as CE and IOS9001.

04

Easy Installation

Stone coated metal roof tile fits many roof structures, it is widely used and easy to install.

Parameter specification

Colorful Stone Coated Metal Roofing Tiles - Bond Type

Thickness

0.35mm,0.4mm,0.45mm,0.5mm

Weight

2.3~3.2kg per piece

Overall size

1335mm*420mm

Valid size

1270mm*380mm

Acreage per tile

0.48SQM

Sheets per square meter

2.08pcs

Package

400-600pieces per package

Loading

8000~10000pcs/20ft container with accessories

Normal color

Red; black; green; charcoal black; weathered brown; grey; sapphire blue...12 standard colors

Special color

Can be produced as request

Application display

Hotel

Villa

Apartment

Office Building

Hospital

School

Mall

Sports Venues

Leisure Facilities

Supermarket

Warehouse

Workshop

Park

Farmhouse

Courtyard
